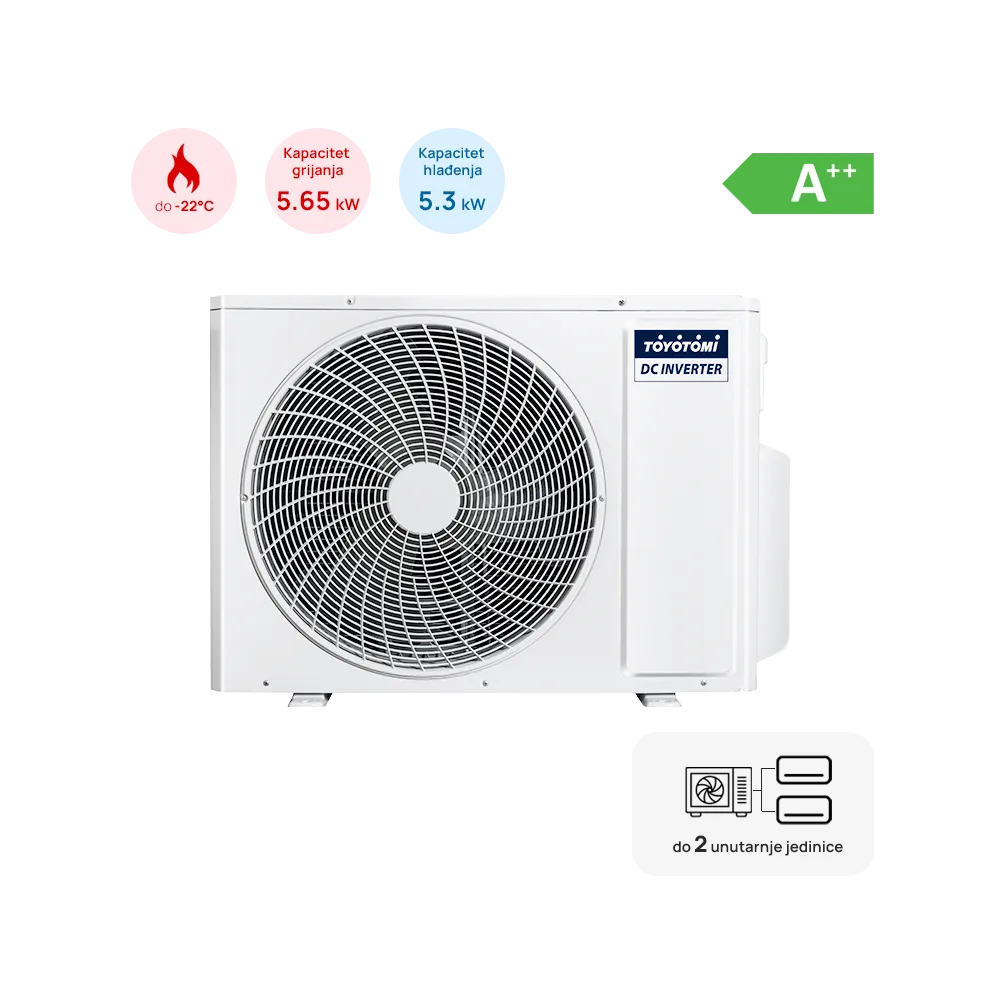

TOYOTOMI Multi Split Outdoor Unit 18000 BTU (5.3 kW), 2 Ports, Inverter, R32

Reliable TOYOTOMI 5.3 kW outdoor unit designed to connect up to two indoor units.

The TOYOTOMI 5.3 kW multi split outdoor unit is designed to connect up to two indoor units, providing efficient cooling and heating. Inverter technology ensures precise performance control, lower energy consumption and increased comfort.

The unit uses eco-friendly R32 refrigerant and is suitable for various климатических условий. Its compact design and high efficiency make it ideal for residential and commercial applications.

Technical specifications:
– Manufacturer: TOYOTOMI
– Model: MULR32-18INV-2
– Type: multi split outdoor unit
– Inverter: yes

– Cooling capacity: 5300 W (2140 ~ 5800 W)
– Heating capacity: 5650 W (2580 ~ 6500 W)
– Peak cooling: 5300 W
– SEER: 6.6 W/W
– Energy class (cooling): A++

– Peak heating: 5650 W
– SCOP: 4.5 W/W
– Energy class (heating): A+

– Annual energy consumption:
cooling: 294 kWh
heating: 1435 kWh

– Noise level: 64 dB(A)
– Sound pressure: 54 dB(A)

– Power supply: 220–240 V / 50 Hz / 1 phase

– Operating temperature:
cooling: −15 ~ 43°C
heating: −22 ~ 24°C

– Refrigerant: R32 / 900 g
– Fan type: axial

– Pipe connection:
gas: 3/8"
liquid: 1/4"

– Max indoor units: 2

– Max pipe length (single): 20 m
– Max total pipe length: 30 m
– Max without refill: 10 m
– Max with refill: 40 m
– Additional charge: 20 g/m

– Coverage area: 35–75 m²

– Dimensions (W×H×D): 822 × 550 × 352 mm
– Net weight: 47.5 kg

– Certifications: CE, RoHS

Compatible indoor unit combinations:
Single: 7 / 9 / 12
Combinations:
7 + 7
7 + 9
7 + 12
9 + 9
9 + 12
12 + 12
7 + 18

Additional features:
– Self-diagnosis
– Intelligent defrost
– Anti-corrosion (Blue Fin)
– Quiet mode
– Auto restart
– Wide voltage range
– Smooth start
– Base heater
