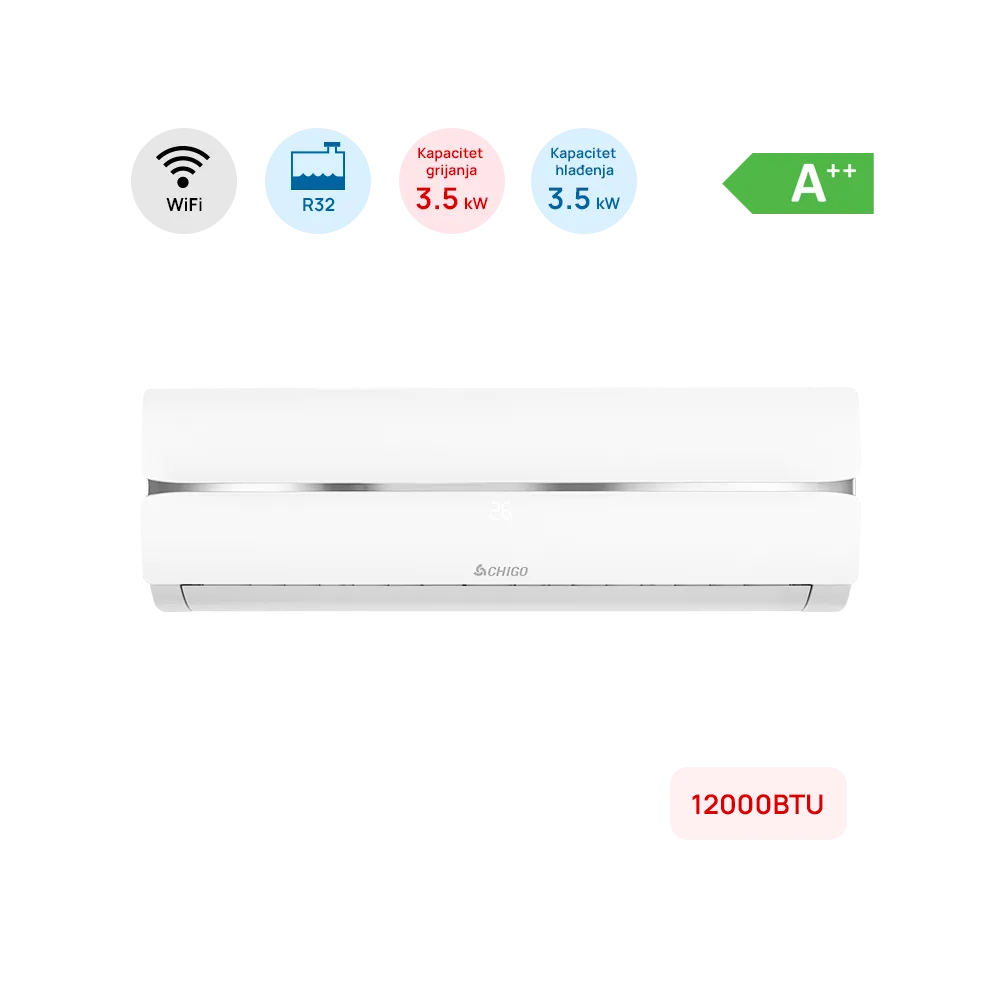

Chigo Inverter Air Conditioner 12000 BTU (3.5 kW), Wi-Fi, Heating to −25°C, A++, R32, White

The Chigo 12000 BTU (3.5 kW) inverter air conditioner is designed for efficient cooling and heating of residential and office spaces. Modern inverter technology ensures stable temperature, economical operation and year-round comfort.

The unit is equipped with Wi-Fi and supports control via Smart Life / Smart Home / Tuya apps, allowing convenient remote control from a smartphone. The built-in heater makes the system suitable for colder periods, while heating operation down to −25°C makes this model a strong option for winter use.

The air conditioner uses eco-friendly R32 refrigerant and meets high energy efficiency requirements: A++ for cooling and A+ for heating. The product comes with a 36-month warranty.

Main barcode: 3858893889564
Additional barcode (indoor unit):  3858893889571
Additional barcode (outdoor unit): 3858893889588

Technical specifications:
– Manufacturer: Chigo
– Model: CS-35V3G-1C172AM
– Capacity: 12000 BTU
– Type: inverter
– Control: IR remote control + Wi-Fi
– Wi-Fi app: Smart Life / Smart Home / Tuya
– With heater
– Nominal cooling capacity: 3500 W (300 W ~ 3800 W)
– Nominal heating capacity: 3500 W (300 W ~ 3900 W)
– Cooling power input: 1100 W (150 W ~ 1400 W)
– Heating power input: 1000 W (150 W ~ 1270 W)
– Cooling operating current: 5.0 A (0.8 A ~ 6.9 A)
– Heating operating current: 4.5 A (0.8 A ~ 6.2 A)
– Average SEER / SCOP for cooling: 3.18 W/W
– Average SEER / SCOP for heating: 3.50 W/W
– Average energy class for cooling: A++
– Average energy class for heating: A+
– SCOP for cooling in warm conditions: /
– SCOP for heating in warm conditions: 5.1 W/W
– Energy class for cooling in warm conditions: /
– Energy class for heating in warm conditions: A+++
– Indoor sound power level: 32 ~ 51 dB(A)
– Outdoor sound power level: 61 dB(A)
– Indoor sound pressure level: 22 ~ 40 dB(A)
– Outdoor sound pressure level: 51 dB(A)
– Rated voltage / frequency: 1Ph / 220–240 V / 50 Hz
– Refrigerant / charge / GWP: R32 / 490 g / 675
– Compressor: GMCC
– Indoor air circulation: ≥ 600 m³/h
– Liquid side / gas side / length (mm): φ6 + φ9 × 3000
– Maximum refrigerant pipe length: 15 m
– Maximum height difference: 5 m
– Operating temperature range: 16–31°C
– Ambient temperature range (outdoor unit): cooling −15 ~ 50°C; heating −25 ~ 30°C
– Ambient temperature range (indoor unit): cooling 17 ~ 32°C; heating 0 ~ 30°C
– Net weight: indoor unit 8 kg / outdoor unit 20 kg
– Indoor unit packing dimensions (L × W × H): 860 × 366 × 301 mm
– Outdoor unit packing dimensions (L × W × H): 777 × 333 × 530 mm
– Gross weight: indoor unit 11 kg / outdoor unit 22 kg
– Indoor unit color: white
– Certifications: CE, RoHS
– Warranty: 36 months
